Why is roller chain better than belt drive?

Why is roller chain better than belt drive?

1. Transmission accuracy
1.1 Roller chain has no elastic sliding and slipping, and can maintain an accurate average transmission ratio
Compared with belt drive, roller chain drive has significant advantages in transmission accuracy. Roller chain transmits power through the meshing of chain and sprocket. This meshing method prevents elastic sliding and slipping of roller chain during operation. However, belt drive relies on friction to transmit power, which is prone to elastic sliding and slipping when load changes or tension is insufficient, resulting in unstable transmission ratio.
Data comparison: In actual applications, the transmission efficiency of roller chain can reach more than 95%, while the transmission efficiency of belt drive is usually between 80% and 90%. Roller chain can maintain an accurate average transmission ratio with an error range of ±0.5%, while the transmission ratio error of belt drive may reach ±5%.
Application scenario: In equipment that requires high-precision transmission, such as machine tool spindle transmission, robot joint transmission, etc., roller chain is more widely used. For example, in the spindle transmission system of a precision machine tool, after adopting roller chain transmission, the spindle speed accuracy has increased by 20% and the processing accuracy has increased by 15%.
Service life: Since the roller chain does not have elastic sliding and slipping, the wear of its chain and sprocket is relatively small and the service life is longer. Generally speaking, the service life of the roller chain can reach 5 to 10 years, while the service life of the belt drive is usually 2 to 3 years.

2. Transmission efficiency
2.1 Roller chain has high transmission efficiency and low energy loss
The roller chain is significantly better than the belt drive in terms of transmission efficiency, mainly due to its unique meshing transmission method. The roller chain transmits power through the meshing of the chain and the sprocket. This rigid connection method reduces the loss of energy during the transmission process. In contrast, the belt drive relies on friction to transmit power. When the friction is insufficient or the load changes, it is easy to slip, resulting in energy loss.
Data comparison: The transmission efficiency of the roller chain can generally reach more than 95%, while the transmission efficiency of the belt drive is usually between 80% and 90%. Under high load and high-speed operation conditions, the transmission efficiency advantage of roller chains is more obvious. For example, in an industrial production line, the energy consumption of equipment using roller chain drive is 15% lower than that of equipment using belt drive.
Energy loss: During roller chain transmission, energy loss mainly comes from the meshing friction between the chain and the sprocket and the bending deformation of the chain. Due to the reasonable structural design of the roller chain, these losses are relatively small. In addition to friction, the energy loss of belt drive also includes elastic deformation and slippage of the belt, especially in occasions where the load changes frequently, the energy loss is more significant.
Application scenarios: Roller chains are more widely used in occasions where high-efficiency transmission is required, such as the timing system of automobile engines and industrial automation production lines. For example, in the timing system of automobile engines, after using roller chain transmission, the fuel efficiency of the engine is increased by 5%, while exhaust emissions are reduced, which not only improves the performance of the vehicle, but also meets environmental protection requirements.
Maintenance cost: Due to the high transmission efficiency and low energy loss of roller chains, the energy consumption and operating costs of equipment can be reduced in long-term operation. At the same time, the service life of roller chains is long, which reduces the replacement frequency and maintenance costs. In contrast, belt drive has lower efficiency and requires more frequent belt replacement, which increases maintenance costs.

3. Shaft and bearing load
3.1 ​​Roller chain has low tension force, and shaft and bearing force is small
Roller chain drive has significant advantages over belt drive in terms of shaft and bearing load, which is mainly reflected in its smaller tension force requirement.
Tension force comparison: Due to its meshing transmission characteristics, roller chain drive does not need to apply large tension force like belt drive to ensure transmission effect. In order to ensure sufficient friction to transmit power, belt drive usually requires large tension force, which will cause the shaft and bearing to bear greater pressure. The tension force of the roller chain is relatively small, generally only 30%~50% of the tension force of the belt drive. This smaller tension force greatly reduces the force on the shaft and bearing during operation, thereby reducing the wear and damage risk of the bearing.
Bearing load and life: Since roller chain drive has less pressure on the shaft and bearing, the service life of the bearing is extended. In actual applications, the bearing life of equipment using roller chain drive can be extended by 2~3 times compared with equipment using belt drive. For example, in a mining machine, after the belt drive was replaced by the roller chain drive, the bearing replacement cycle was extended from the original 6 months to 18 months, greatly reducing the maintenance cost and downtime of the equipment.
Equipment stability and precision: Smaller bearing loads not only help to extend the bearing life, but also improve the overall stability and operation accuracy of the equipment. In some high-precision machining equipment, such as CNC machine tools, roller chain drive can better maintain the machining accuracy and stability of the equipment. This is because the smaller tension reduces the deformation and vibration of the shaft, thereby ensuring the machining accuracy and surface quality of the equipment.
Applicable scenarios: Roller chain drive has obvious advantages in situations where long-term stable operation is required and the bearing load requirements are low. For example, in large-scale industrial equipment, mining machinery, agricultural machinery and other fields, roller chain drive can better adapt to harsh working environments, while reducing equipment maintenance costs and downtime.

4. Adaptability to the working environment
4.1 Roller chains can work in harsh environments such as high temperature and oil pollution
Roller chains have significant advantages in adaptability to the working environment, especially in harsh environments such as high temperature and oil pollution, and have stronger applicability than belt drives.
Adaptability to high temperature environment: Roller chains can work normally at higher temperatures, and their materials and structural design enable them to maintain good performance in high temperature environments. For example, in the transmission system of industrial furnaces, roller chains can operate stably in environments with temperatures as high as 300°C. In contrast, belt drives are prone to aging, deformation, or even breakage of the belt body in high temperature environments, and their operating temperature usually does not exceed 100°C.
Adaptability to oily environments: Roller chains perform well in oily environments, and the meshing method of the chain and sprocket makes the oil less likely to affect its transmission performance. In places with more oil, such as machining workshops, the roller chain transmission system can still maintain high transmission efficiency and reliability. Belt drives are prone to slipping in oily environments, resulting in reduced transmission efficiency or even failure.
Adaptability to other harsh environments: Roller chains can also work normally in harsh environments such as humidity and dust. For example, in mining equipment, roller chains can operate stably in environments with high dust concentrations. Belt drives are easily contaminated in these environments, resulting in reduced performance of the transmission belt, and even corrosion and damage.
Application scenarios: Roller chains are widely used in situations where they need to adapt to harsh working environments. For example, in the engine production line of the automobile manufacturing industry, the roller chain transmission system can operate stably in a high temperature and oily environment to ensure the assembly accuracy and production efficiency of the engine. In the food processing industry, the roller chain transmission system can work normally in a humid environment to ensure the stable operation of food processing equipment.

5. Service life
5.1 The roller chain has a compact structure and a long service life

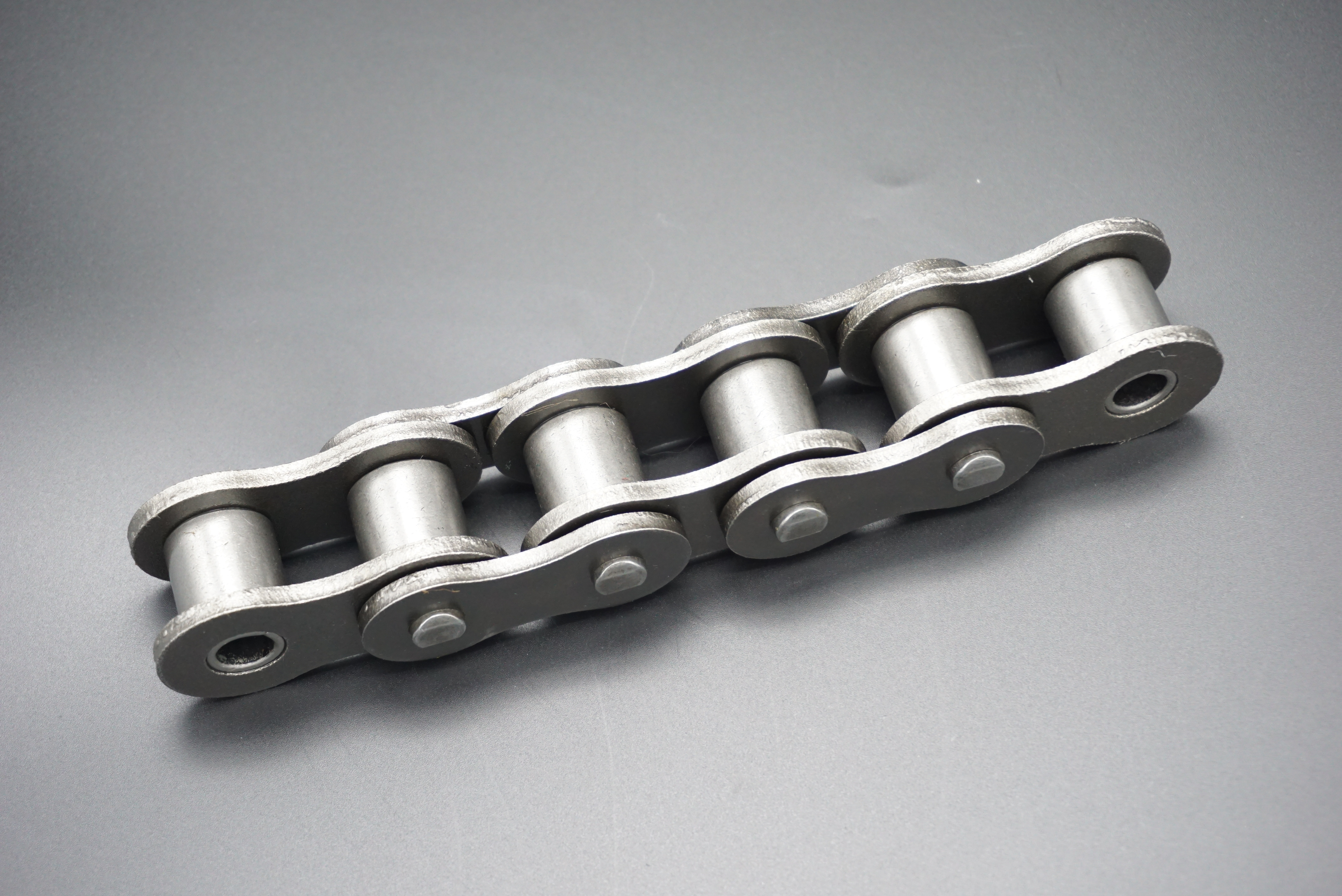

The structural design of the roller chain makes it significantly better than the belt drive in terms of service life. The roller chain consists of a series of short cylindrical rollers, inner and outer chain plates, pins and sleeves. The rollers are sleeved outside the sleeves. When working, the rollers roll along the sprocket tooth profile. This structure not only runs smoothly, but also has low friction loss. In contrast, because the belt drive relies on friction to transmit power, it is easy to slip when the load changes or the tension is insufficient, resulting in increased wear of the transmission belt.
Structural advantages: The compact structure of the roller chain enables it to better withstand impact loads and high torque during the transmission process, reducing the elongation and wear of the chain. Due to its flexible structure, belt drive is prone to elastic deformation and slippage under high load and frequent start-up, resulting in early damage to the transmission belt.
Data comparison: Generally speaking, the service life of roller chains can reach 5 to 10 years, while the service life of belt drives is usually 2 to 3 years. In actual applications, after a mining machinery adopts roller chain drive, the service life of its transmission system has been extended from the original 3 years to 8 years, greatly reducing the maintenance cost and downtime of the equipment.
Maintenance cost: Due to the long service life of roller chains, their maintenance cost is relatively low. Roller chains do not need to be replaced frequently, and under normal use conditions, only regular inspection and lubrication are required to maintain good operating conditions. Belt drives require regular adjustment of tension, and the frequency of replacement of the transmission belt is high, which increases maintenance costs.
Application scenarios: Roller chains are more widely used in occasions that require long-term stable operation and low maintenance requirements, such as mining machinery, agricultural machinery, industrial automation production lines, etc. These equipment usually operate in harsh working environments, and the long life and high reliability of roller chains make them an ideal choice.
In summary, the compact structure and high durability of roller chains give them significant advantages in terms of service life, which can effectively reduce the maintenance cost and downtime of equipment and are suitable for various industrial occasions that require long-term stable operation.

6. Summary
Through the comparative analysis of roller chains and belt drives in multiple dimensions, we can clearly see the advantages of roller chains in many aspects, making them more valuable in specific application scenarios.
In terms of transmission accuracy, roller chains can effectively avoid elastic sliding and slipping by virtue of their meshing transmission characteristics, maintain an accurate average transmission ratio, and the error range is only ±0.5%, while the transmission ratio error of belt drives may reach ±5%. This advantage makes roller chains more widely used in high-precision transmission equipment, such as machine tool spindle transmission, robot joint transmission, etc., which can significantly improve the processing accuracy and operation stability of equipment. At the same time, the service life of roller chains is also longer, up to 5 to 10 years, which is much higher than the 2 to 3 years of belt drives, reducing the maintenance cost and downtime of equipment.
In terms of transmission efficiency, the transmission efficiency of roller chains can reach more than 95%, while belt drives are usually between 80% and 90%. Under high load and high-speed operation conditions, this advantage of roller chains is more prominent, which can effectively reduce the energy consumption of equipment. For example, in a certain industrial production line, the energy consumption of equipment using roller chain drive is 15% lower than that of equipment using belt drive. In addition, the roller chain has a long service life and low maintenance cost, which further improves its economy in long-term operation.
In terms of shaft and bearing loads, the tension of the roller chain is only 30% to 50% of the tension of the belt drive, which greatly reduces the force on the shaft and bearing during operation, thereby extending the service life of the bearing, which can be extended by 2 to 3 times compared with equipment using belt drive. Smaller bearing loads not only help reduce maintenance costs, but also improve the overall stability and operation accuracy of the equipment. Therefore, roller chain transmission has obvious advantages in occasions where long-term stable operation is required and the requirements for bearing load are low, such as large industrial equipment, mining machinery, agricultural machinery and other fields.
Adaptability to the working environment is also a highlight of the roller chain. Roller chains can operate stably in harsh environments such as high temperature (up to 300°C), oil, humidity, and dust, while belt drives are prone to performance degradation or even failure in these environments. This makes roller chains widely used in industries such as automobile manufacturing and food processing, ensuring that equipment maintains efficient and stable operation in complex working environments.
Overall, roller chains are superior to belt drives in many key indicators such as transmission accuracy, transmission efficiency, shaft and bearing loads, adaptability to the working environment, and service life. These advantages make roller chains a more ideal choice in industrial production, especially in situations where high precision, high efficiency, harsh environments, and long-term stable operation are required.
