How to cut a roller chain

Roller chains are an important component in a variety of mechanical systems, from bicycles to industrial machinery. They transmit power efficiently and can withstand huge loads. However, sometimes you may need to cut a roller chain to fit a specific application or replace a damaged section. This guide walks you through the process of cutting roller chain safely and efficiently, covering everything from the tools needed to step-by-step procedures, maintenance tips, and more.

Table of contents

1. Understand roller chain

• 1.1 What is a roller chain?
• 1.2 Types of roller chains
• 1.3 Application of roller chain

2. Tools and Materials Required

• 2.1 Basic tools
• 2.2 Safety equipment
• 2.3 Replacement parts

3. Get ready to cut the chain

• 3.1 Evaluation chain
• 3.2 Measure the required length
• 3.3 Mark cutting points

4. Cut off the roller chain

• 4.1 Using chain tools
• 4.2 Alternative cutting methods
• 4.3 Clean cutting techniques

5. Reassemble the chain

• 5.1 Connecting links
• 5.2 Ensure proper tension
• 5.3 Test chain

6. Maintenance and Maintenance

• 6.1 Regular inspection
• 6.2 Lubrication
• 6.3 Storage tips

7. FAQ and Troubleshooting

• 7.1 Chain wear and stretch
• 7.2 Misalignment problem
• 7.3 Noise and vibration

8. Conclusion

• 8.1 Final Thoughts
• 8.2 Resources for further study

1. Understand roller chain

1.1 What is a roller chain?

A roller chain is a chain that consists of a series of interconnected links, each with a roller that moves smoothly over a sprocket. This design enables the chain to transmit mechanical power efficiently, making it a popular choice in a variety of applications.

1.2 Types of roller chains

There are many types of roller chains, including:

• Single Strand Chain: The most common type, used in light to medium duty applications.
• Double Strand Chain: Designed for heavier loads, with two parallel strands of links.
• Triple Strand Chain: For very heavy-duty applications, providing extra strength and durability.
• Specialty Chains: These include chains designed for specific applications, such as chains with attachments for conveying materials.

1.3 Application of roller chain

Roller chains are used in a wide range of applications, including:

• Bicycle: Transmits power from the pedals to the rear wheel.
• Conveyor Systems: Moving materials in manufacturing and distribution.
• Agricultural Equipment: Powers machinery such as tractors and harvesters.
• Industrial Machinery: Used for power transmission in various machines.

2. Required tools and materials

2.1 Basic Tools

To cut roller chain, you will need the following tools:

• Chain Tool: Special tool designed for breaking and reassembling roller chains.
• Pliers: For clamping and manipulating chain links.
• Tape Measure: Measure the desired chain length.
• Marker or Chalk: Used to mark cutting points on the chain.
• Safety Glasses: Protect your eyes during cutting.

2.2 Safety equipment

Safety should always be your top priority when using tools. In addition to safety glasses, consider wearing:

• GLOVES: Protect your hands from sharp edges.
• Steel Toe Boots: Protect your feet from heavy tools or chain sections.

2.3 Replacement parts

If you are cutting the chain to replace a damaged section, make sure you have the necessary replacement links or connectors on hand.

3. Prepare to cut the chain

3.1 Evaluation chain

Before cutting, inspect the chain for any signs of wear or damage. Looking for:

• Worn Rollers: These can affect the performance of the chain.
• Stretched Links: A stretched chain may need to be replaced rather than cut.
• Corrosion: Rust will weaken the chain and should be addressed.

3.2 Measure the required length

Determine the chain length required for your application. Measure the distance between sprockets or the area where the chain is installed. Any tensioning mechanisms that may affect the final length must be considered.

3.3 Mark cut points

Once you have the desired length, mark the points on the chain where you want to cut. Use markers or chalk to ensure visibility.

4. Cutting roller chain

4.1 Using chain tools

The most efficient way to cut roller chain is with a chain tool. Here’s how to do it:

1. Positioning the Chain: Place the chain into the tool, aligning the marked cutting point with the tool’s cutting pin.
2. Insert Pin: Gently screw the cutting pin into the link until the pin is pushed out of the link.
3. Remove Link: After the pin is pushed out, remove the link from the chain.
4. Repeat if necessary: If you need to cut multiple links, repeat this process for each link.

4.2 Alternative cutting methods

If you don’t have a chain tool, you can use other methods, but they may not be as precise:

• Angle Grinder: Use an angle grinder with a metal cutting disc to cut the chain. Make sure to wear safety gear and work in a well-ventilated area.
• Hacksaw: A hacksaw can be used to cut chains, but may require more effort and time.

4.3 Clean cutting techniques

• Work Slowly: Rushing can result in incorrect or uneven cuts.
• KEEP THE CHAIN ​​STABLE: Use clamps or a vise to hold the chain in place while cutting.
• CHECK ALIGNMENT: Make sure the cuts are straight to avoid problems when reassembling the chain.

5. Reassemble the chain

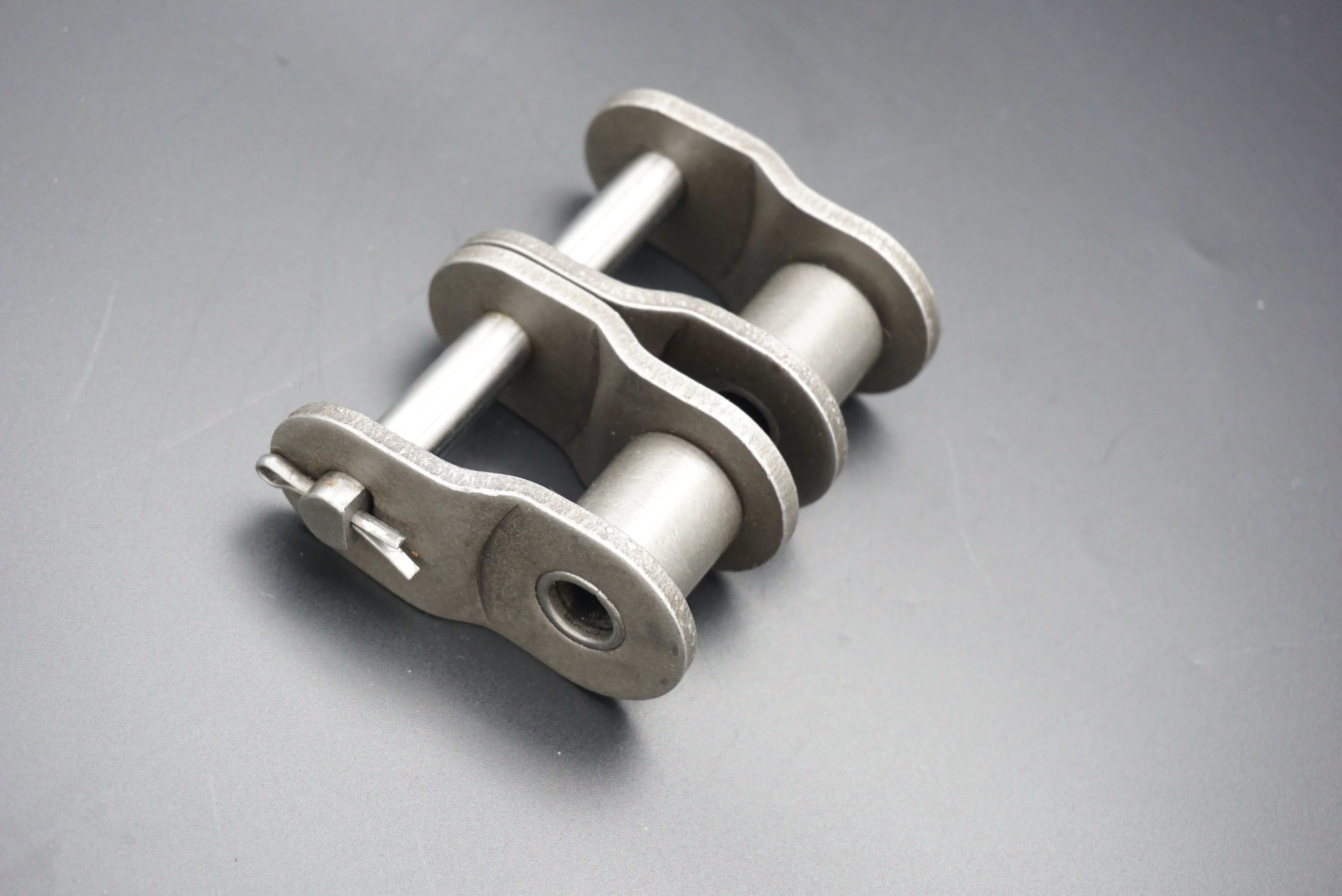

5.1 Connecting Links

After cutting the chain, you need to reattach the links. Here’s how:

1. Align Links: Place both ends of the chain side by side.
2. Insert New Pin: Use a new pin or the original pin if it is still in good condition. Insert it via aligned links.
3. Secure Pin: Use a chain tool to press the pin back into place, making sure it is flush with the chain link.

5.2 Ensure proper tension

After reassembling the chain, check the tension. A properly tensioned chain should have slight slack, but not too much slack. Adjust the tensioning mechanism as needed.

5.3 Test chain

Before putting your chain back into full operation, test it:

• Swivel Sprocket: Make sure the chain moves smoothly on the sprocket without getting stuck.
• Listen for Noises: Any unusual sounds may indicate misalignment or improper tension.

6. Maintenance and care

6.1 Regular inspection

Check your roller chain regularly for signs of wear, including:

• Worn Rollers: If severely worn, replace.
• Stretch Links: Measure the chain to check elongation.
• Corrosion: Clean and lubricate to prevent rust.

6.2 Lubrication

Proper lubrication is critical to the service life of roller chains. Please follow these tips:

• Use the right lubricant: Choose a lubricant specifically designed for roller chains.
• REGULAR APPLICATION: Lubricate the chain every few weeks or as needed based on usage.
• Avoid Overlubrication: Too much lubricant can attract dirt and debris.

6.3 Storage Tips

If you need to store your roller chain, follow these guidelines:

• CLEAN BEFORE STORAGE: Remove any dirt or debris.
• LUBRICATION: Apply a thin layer of lubricant to prevent rust.
• STORE IN A DRY PLACE: Store the chain in a cool, dry environment to avoid moisture buildup.

7. Frequently Asked Questions and Troubleshooting

7.1 Chain wear and stretch

Over time, roller chains can wear and stretch, causing performance issues. Regularly measure the length of the chain and replace it if it exceeds the manufacturer’s specifications.

7.2 Misalignment problem

Misalignment can cause excessive wear and noise. Make sure the sprockets are properly aligned and adjust as needed.

7.3 Noise and Vibration

If you notice unusual noise or vibration, it may indicate a problem with the chain or sprocket. Check for wear, misalignment or loose connections.

8. Conclusion

8.1 Final Thoughts

Cutting roller chain may seem daunting, but with the right tools and knowledge, it can be done safely and efficiently. Regular maintenance and upkeep will ensure your roller chain runs smoothly and lasts for years to come.

8.2 Resources for further study

For more information about roller chains, consider the following resources:

• Manufacturer’s Manual: Always refer to the manufacturer’s guidelines for specific instructions.
• Online Tutorials: Websites and video platforms often have tutorials on chain maintenance and cutting.
• Local Workshop: Consider attending a machinery maintenance workshop or course to gain hands-on experience.

By following this comprehensive guide, you can cut and maintain roller chain with confidence, ensuring optimal performance for your application.
