There are 4 components of a chain drive.
Chain transmission is a common mechanical transmission method, which usually consists of chains, gears, sprockets, bearings, etc.

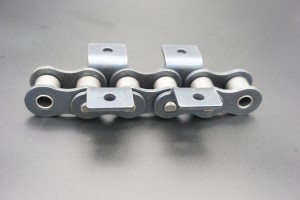

Chain:
First of all, the chain is the core component of the chain drive. It is composed of a series of links, pins and jackets. The function of the chain is to transmit power to the gear or sprocket. It has a compact structure, high strength, and can adapt to high-load, high-speed working environments.
gear:
Secondly, gears are an important part of chain transmission, which are composed of a series of gear teeth and hubs. The function of the gear is to convert the power from the chain into rotational force. Its structure is properly designed to achieve efficient energy transfer.
Sprocket:
In addition, the sprocket is also an important part of the chain drive. It is composed of a series of sprocket teeth and hubs. The function of the sprocket is to connect the chain to the gear so that the gear can receive the power from the chain.
Bearings:
In addition, chain transmission also requires the support of bearings. Bearings can ensure smooth rotation between chains, gears, and sprockets, while reducing friction and extending the service life of mechanical parts.
In short, chain transmission is a complex mechanical transmission method. Its components include chains, gears, sprockets, bearings, etc. Their structure and design play a vital role in the efficiency and stability of chain transmission.
Chain drive working principle:
The chain drive is a meshing drive, and the average transmission ratio is accurate. It is a mechanical transmission that uses the meshing of the chain and sprocket teeth to transmit power and motion. Chain length is expressed in the number of links.
Number of chain links:
The number of chain links is preferably an even number, so that when the chains are connected into a ring, the outer link plate is connected to the inner link plate, and the joints can be locked with spring clips or cotter pins. If the number of chain links is an odd number, transition links must be used. Transition links also bear additional bending loads when the chain is under tension and should generally be avoided.
Sprocket:
The tooth shape of the sprocket shaft surface is arc-shaped on both sides to facilitate the entry and exit of the chain links into mesh. The sprocket teeth should have sufficient contact strength and wear resistance, so the tooth surfaces are mostly heat treated. The small sprocket engages more times than the large sprocket and suffers greater impact, so the material used should generally be better than the large sprocket. Commonly used sprocket materials include carbon steel, gray cast iron, etc. Important sprockets can be made of alloy steel.
