Accuracy requirements for roller chain hardness testing: key elements and practical guidelines
In the field of mechanical transmission, roller chains are key transmission components, and their performance and quality are directly related to the operating efficiency and reliability of mechanical equipment. As an important means of evaluating the quality of roller chains, the accuracy requirements of hardness testing cannot be ignored. This article will explore the accuracy requirements of roller chain hardness testing in depth, including relevant standards, factors affecting accuracy, and methods to improve accuracy, aiming to provide valuable information for international wholesale buyers to help them choose high-quality roller chain products.

1. The importance of roller chain hardness testing

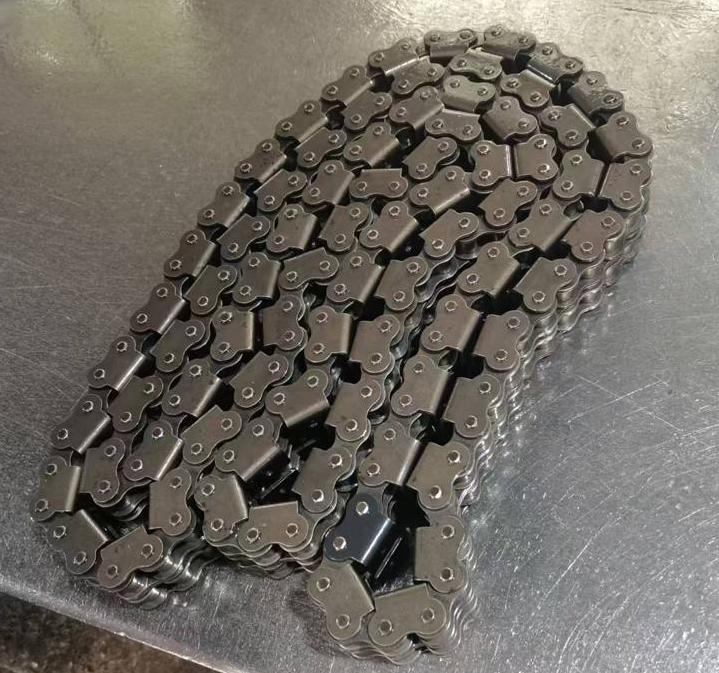

Roller chains play a key role in the transmission systems of various mechanical equipment, such as motorcycles, bicycles, industrial machinery, etc. Its main function is to withstand tension and transmit power, so it needs to have good mechanical properties, including tensile strength, fatigue strength, wear resistance, etc. Hardness, as an important indicator of material mechanical properties, is closely related to these properties of roller chains.
Hardness testing can reflect the strength and wear resistance of roller chain materials. For example, higher hardness usually means that the material has better wear resistance and can resist wear during long-term use, thereby ensuring the dimensional accuracy and transmission performance of the roller chain. At the same time, hardness is also related to the tensile strength of the roller chain. A roller chain with appropriate hardness can maintain structural integrity and stability when subjected to tension.

2. Standard requirements for roller chain hardness testing

(I) International standard ISO 606:2015

ISO 606:2015 “Short pitch precision roller chains, sprockets and chain drive systems for transmission” is an internationally used roller chain testing standard, covering the design, materials, manufacturing, inspection and acceptance of chains. This standard puts forward clear requirements for the hardness test of roller chains, including test methods, test locations, hardness ranges, etc.

Test method: Rockwell hardness tester is usually used for testing. This is a commonly used hardness test method with the characteristics of simple operation and fast speed. During the test, the chain plates, pins and other components of the roller chain are placed on the workbench of the hardness tester, a certain load is applied, and the hardness value is determined by measuring the depth of the indentation.
Test location: Hardness tests are performed on different parts of the roller chain, such as the surface of the chain plate, the head of the pin, etc., to ensure a comprehensive assessment of the hardness of the roller chain. The hardness requirements of these parts are different. The surface hardness of the chain plate is generally required to be between 30-40HRC, and the hardness of the pin is required to be around 40-45HRC.
Hardness range: The ISO 606:2015 standard specifies the corresponding hardness range for roller chains of different types and specifications to ensure the performance of the roller chain in actual use. For example, for some small roller chains, the hardness requirements of their chain plates are relatively low, while roller chains used in heavy machinery require higher hardness.
(II) Chinese National Standard GB/T 1243-2006
GB/T 1243-2006 “Short Pitch Precision Roller Chains and Sprockets for Transmission” is an important national standard for roller chains in China, which specifies in detail the classification, technical requirements, test methods, inspection rules, and marking, packaging, transportation and storage requirements of roller chains. In terms of hardness testing, the standard also has specific provisions.
Hardness index: The standard stipulates that the hardness of the roller chain’s chain plate, pin shaft, sleeve and other components should meet certain requirements. Taking the chain plate as an example, its hardness requirement is generally between 180-280HV (Vickers hardness), and the specific value varies according to the specifications and uses of the roller chain. For some high-strength roller chains, the hardness requirement of the chain plate may be higher to meet its use requirements under heavy loads, impacts and other working conditions.
Test method and frequency: Use appropriate hardness test methods, such as Rockwell hardness test or Vickers hardness test, to regularly test the hardness of the roller chain to ensure that its hardness meets the standard requirements. During the production process, each batch of roller chains is usually sampled and tested to ensure the stability of the overall product quality.

3. Factors affecting the accuracy of roller chain hardness test

(I) Accuracy of test equipment
The accuracy of the hardness test equipment has a direct impact on the accuracy of the test results. If the accuracy of the hardness tester is not high enough or the equipment is not properly calibrated, it may cause deviations in the test results. For example, problems such as wear of the indenter and inaccurate load application of the hardness tester will affect the measurement of the hardness value.
Equipment calibration: Regular calibration of the hardness tester is one of the key measures to ensure the accuracy of the test. Use a standard hardness block to calibrate the hardness tester and check whether its indication error is within the allowable range. It is generally recommended to calibrate the hardness tester at least once a year to ensure its measurement accuracy.
Equipment selection: It is also very important to select hardness testing equipment with high accuracy and reliable quality. There are many types of hardness testers available on the market, such as Rockwell hardness tester, Vickers hardness tester, Brinell hardness tester, etc. For roller chain hardness testing, Rockwell hardness tester is usually preferred, which has a wide measurement range and is easy to operate, and can meet the requirements of most roller chain hardness tests.
(II) Preparation of test samples
The quality and preparation method of the test sample will also affect the accuracy of the hardness test. If the sample surface is rough, defective or uneven, it may cause inaccurate or unreliable test results.
Sample preparation: Before conducting a hardness test, the test part of the roller chain needs to be properly prepared. First, ensure that the surface of the test part is clean and remove oil, impurities, etc. The test surface can be cleaned with appropriate cleaning agents and wiping methods. Secondly, for some rougher parts, grinding or polishing may be required to obtain a flat test surface. However, care should be taken to avoid changes in material properties caused by excessive grinding or polishing.
Sample selection: Representative samples should be selected from different parts of the roller chain for testing to ensure that the test results can truly reflect the overall hardness of the roller chain. At the same time, the number of samples should be sufficient to meet the requirements of statistical analysis.
(III) Operation level of testers
The operation level of testers also has an important impact on the accuracy of hardness testing. Different testers may use different operating methods and techniques, resulting in differences in test results.
Training and qualifications: Professional training is provided to testers to familiarize them with the principles, methods and equipment operating procedures of hardness testing and master the correct testing techniques. Testers should have corresponding qualification certificates to prove their ability to conduct hardness testing independently.
Operation specifications: Strict operation specifications and processes should be formulated, and testers are required to operate in accordance with the specifications. For example, during the load application process, it should be ensured that the load is applied evenly and stably to avoid overloading or underloading. At the same time, attention should be paid to the selection of the test location and the recording of the measurement data to ensure the accuracy and traceability of the data.

4Environmental factors

Environmental factors such as temperature and humidity will also have a certain impact on the hardness test. Hardness tests are usually carried out within a certain temperature range. If the temperature is too high or too low, the hardness of the material may change, thus affecting the test results.
Environmental control: During the hardness test, the temperature and humidity of the test environment should be kept stable as much as possible. Generally speaking, the suitable temperature range for hardness testing is 10-35℃, and the relative humidity does not exceed 80%. For some temperature-sensitive materials or high-precision hardness tests, it may be necessary to conduct them in a constant temperature and humidity environment.
Environmental monitoring: During the test, the environmental conditions should be monitored and recorded in real time so that the influence of environmental factors can be considered when analyzing the test results. If it is found that the environmental conditions exceed the allowable range, timely measures should be taken to adjust or retest.

4. Methods to improve the accuracy of roller chain hardness test
(I) Optimize the management of test equipment
Establish equipment files: Establish detailed equipment files for hardness test equipment, recording the basic information of the equipment, purchase date, calibration records, maintenance records, etc. Through the management of equipment files, the operating status and historical records of the equipment can be understood in time, providing a basis for the maintenance and calibration of the equipment.
Regular maintenance: formulate a regular maintenance plan for hardness testing equipment, and perform maintenance work such as cleaning, lubrication, and inspection on the equipment. Regularly replace vulnerable parts, such as the indenter and micrometer screw of the hardness tester, to ensure the normal operation and measurement accuracy of the equipment.
(ii) Strengthen the training of testers
Internal training courses: Enterprises can organize internal training courses and invite professional hardness testing experts or technical personnel from equipment manufacturers to train testers. The training content should include theoretical knowledge of hardness testing, equipment operation skills, test methods and techniques, data processing and analysis, etc.
External training and exchanges: Encourage testers to participate in external training and academic exchange activities to understand the latest technologies and development trends in the field of hardness testing. By exchanging experiences with testers from other companies, they can learn advanced testing methods and management experience and improve their own business level.
(iii) Standardize the testing process
Formulate standard operating procedures (SOP): According to relevant standards and specifications, combined with the actual situation of the enterprise, formulate detailed standard operating procedures for hardness testing. SOP should include the preparation of test equipment, sample preparation, test steps, data recording and processing, etc., to ensure that each tester performs the test in the same operating method.
Strengthen supervision and audit: Establish a special supervisor to supervise the hardness test process to ensure that the tester strictly follows the SOP. Regularly review and analyze the test results, and investigate and handle abnormal data in a timely manner.
(IV) Consider compensation for environmental factors
Environmental monitoring equipment: Equipped with environmental monitoring equipment, such as thermometers, hygrometers, etc., to monitor the temperature and humidity of the test environment in real time. Correlate and analyze the environmental monitoring data with the hardness test results to study the influence of environmental factors on the hardness test.
Data correction method: According to the influence of environmental factors, establish a corresponding data correction model to correct the hardness test results. For example, when the temperature deviates from the standard temperature range, the hardness value can be adjusted according to the temperature coefficient of the material to obtain more accurate test results.

5. Verification method for the accuracy of roller chain hardness test

(I) Comparative test
Select standard sample: Use a standard roller chain sample or standard hardness block with known hardness to compare with the roller chain to be tested. The hardness of the standard sample should be certified and calibrated by an authoritative organization and have high accuracy.
Comparison of test results: Under the same test conditions, perform hardness tests on the standard sample and the sample to be tested respectively, and record the test results. Evaluate the precision and accuracy of the hardness test by comparing the test results with the hardness value of the standard sample. If the deviation between the test result and the standard value is within the allowable range, it means that the accuracy of the hardness test is high; otherwise, the test process needs to be checked and adjusted.
(II) Repeatability test
Multiple measurements: Perform multiple hardness tests on the same test part of the same roller chain, and try to keep the same test conditions and operation methods for each test. Record the results of each test and calculate the statistical parameters such as the average value and standard deviation of the test results.
Evaluate repeatability: According to the results of the repeatability test, evaluate the repeatability and stability of the hardness test. Generally speaking, if the standard deviation of multiple test results is small, it means that the repeatability of the hardness test is good and the test accuracy is high. On the contrary, if the standard deviation is large, there may be unstable test equipment, unstable tester operation or other factors that affect the test accuracy.
(III) Verification by a third-party testing agency
Choose an authoritative agency: Entrust a qualified third-party testing agency to test and verify the hardness of the roller chain. These agencies usually have advanced testing equipment and professional technicians, can test according to strict standards and specifications, and provide accurate and reliable test reports.
Result comparison and analysis: Compare and analyze the hardness test results within the company with the test results of the third-party testing agency. If the results between the two are consistent or the deviation is within the allowable range, it can be considered that the hardness test accuracy within the company is high; if there is a large deviation, it is necessary to find the cause and make improvements.

6. Actual case analysis

(I) Case background
A roller chain manufacturer recently received customer feedback that a batch of roller chains produced by it had problems such as excessive wear and breakage during use. The company initially suspected that the hardness of the roller chain did not meet the requirements, resulting in a decrease in its mechanical properties. In order to find out the cause, the company decided to conduct a hardness test and analysis on the batch of roller chains.
(II) Hardness test process
Sample selection: 10 roller chains were randomly selected from the batch as test samples, and samples were taken from the chain plates, pins and other parts of each roller chain.
Test equipment and methods: Rockwell hardness tester was used for testing. According to the test method required by GB/T 1243-2006 standard, the hardness of the samples was tested under appropriate load and test environment.
Test results: The test results show that the average hardness of the chain plate of this batch of roller chains is 35HRC, and the average hardness of the pin shaft is 38HRC, which is significantly lower than the hardness range required by the standard (chain plate 40-45HRC, pin shaft 45-50HRC).
(III) Cause analysis and solution measures
Cause analysis: Through the investigation and analysis of the production process, it was found that there were problems in the heat treatment process of this batch of roller chains, resulting in insufficient hardness. Insufficient heat treatment time and inaccurate temperature control are the main reasons.
Solution measures: The company promptly adjusted the heat treatment process parameters, extended the heat treatment time, and strengthened temperature control. The hardness test of the re-produced roller chain showed that the hardness of the chain plate reached 42HRC and the hardness of the pin shaft reached 47HRC, which met the standard requirements. The improved roller chain did not have similar quality problems during customer use, and customer satisfaction was improved.

7. Summary

The accuracy requirements of the roller chain hardness test are crucial to ensure its quality and performance. International and national standards have made clear provisions on the methods, locations, and scope of roller chain hardness testing. There are many factors that affect the accuracy of hardness testing, including the accuracy of test equipment, preparation of test samples, operating level of testers, and environmental factors. The accuracy of roller chain hardness testing can be effectively improved by optimizing test equipment management, strengthening tester training, standardizing test processes, and considering compensation for environmental factors. At the same time, the accuracy of hardness testing can be verified by using methods such as comparative testing, repeatability testing, and verification by third-party testing agencies.
In actual production and application, enterprises should strictly follow relevant standards to conduct roller chain hardness testing to ensure the accuracy and reliability of test results. For international wholesale buyers, when choosing roller chain suppliers, they should pay attention to their hardness testing capabilities and quality control levels, and require suppliers to provide accurate hardness test reports and related quality certification documents. Only by selecting high-quality roller chain products that meet hardness requirements can the normal operation and service life of mechanical equipment be guaranteed, the maintenance and replacement costs caused by roller chain quality problems can be reduced, the production efficiency and economic benefits of enterprises can be improved, and a good corporate image and brand reputation can be established in the international market.
